Description

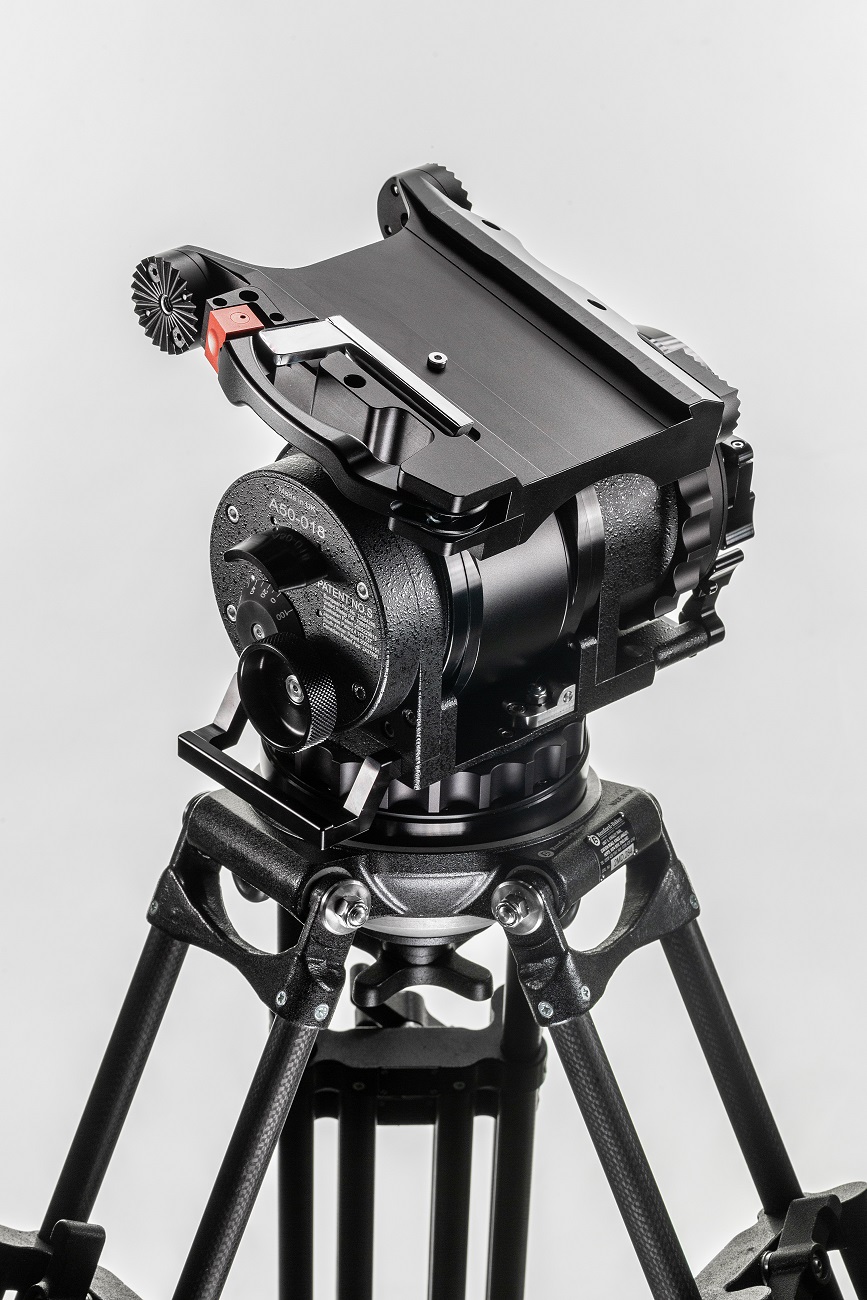

Atlas 50S Fluid Head with Snap & Go side-loading mechanism allows fast mounting and easy adjustment for camera slide plates, compatible with ARRI Slide plates and O’Connor.
Features:
- Tilt range + & – 90 degrees
- Pan range 360 degrees continuous Pan bar mounts
- Two on ratchet discs
- Lifting handles integrated
- Head bases 150 m/m or Mitchell (adaptor)
- Stand off protection on both sides of the head
- Sand proof sealed
- Short plate has 7” / 18 cm movement. The Long plate has 13” / 33 cm movement
- Fluid system, 7 steps pan & tilt with zero positions at either end of the scale
- Counterbalance can also go into “Free” position
- Spirit level with Tritium light source
- Adjustable Eyepiece levelling bracket
- Smooth positive braking on pan & tilt
Technical specs:
- Weight 10.50 Kgs
- Height 265 mm / 10 ½”
- From the tripod bowl 215 mm / 8 /12”
- With Mitchel fitting 250 mm / 10”
- Width 250 mm / 10”
- Depth 175 mm / 7”
